ĐẶC ĐIỂM NỔI BẬT

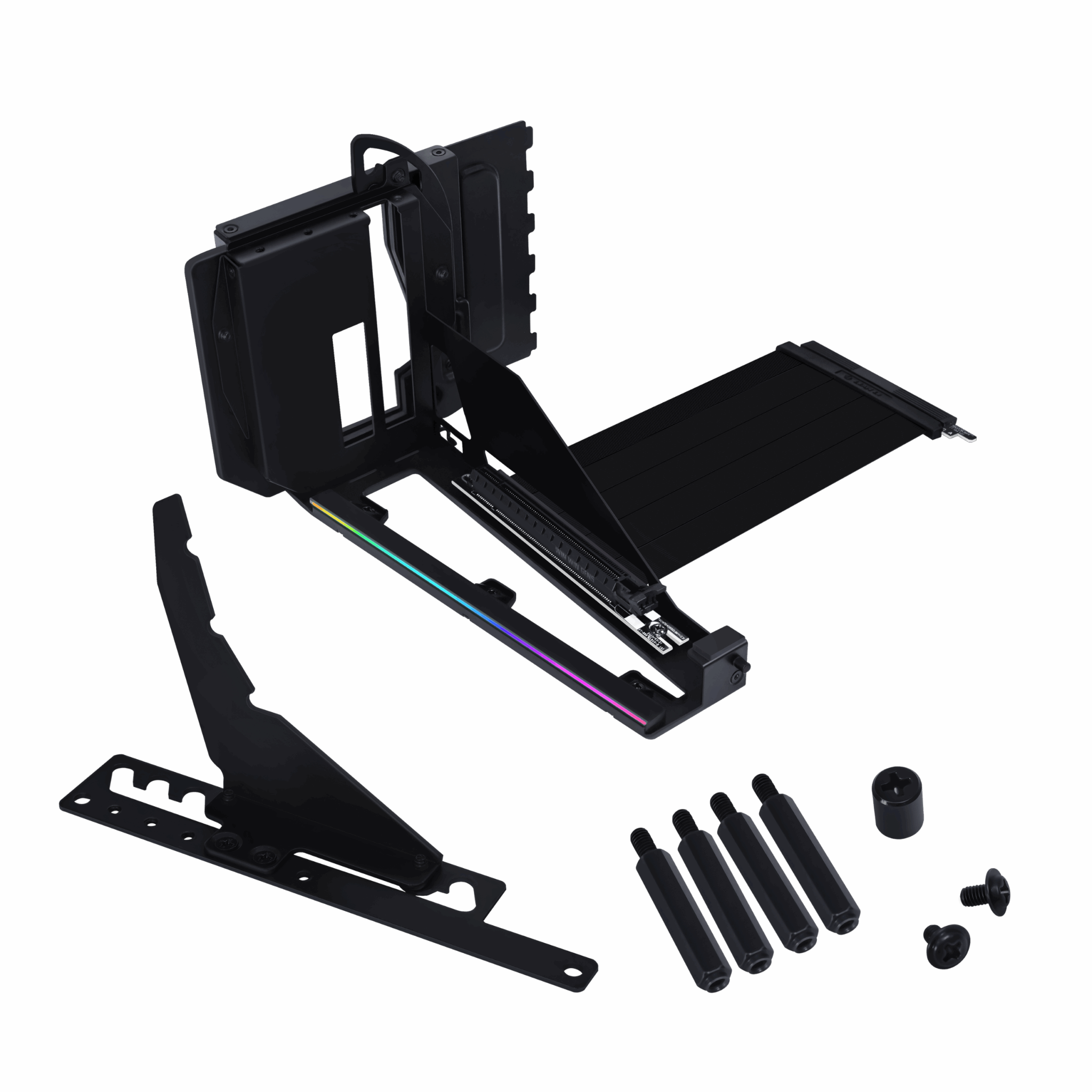

Multi-Directional GPU Vertical Bracket
Redefine Your Angle. Elevate Your Build.
Utilize the included GPU support bracket from the chassis to prevent sagging and maintain perfect alignment of the GPU.
AVAILABLE IN TWO OPTIONS
BLACK
White
Note: This Bracket is designed to be installed with the screws already included with your case. Simply use the PCI-E bracket screws from your chassis, and up to four screws (commonly the same type as PSU screws) to secure your GPU firmly in place.
We’re happy to assist customers who have purchased the Multi-Directional GPU Kit — if you need an additional set of 6#32 standoffs, feel free to request one.
FINE-TUNED HEIGHTS,
PERFECTED BUILDS
Three-Level Height Adjustment
The bracket provides three mounting heights, each adjustable in 10.16mm increments with a simple one-screw adjustment, enabling precise GPU positioning and allowing clearance for bottom fans or larger CPU coolers with ease.
Level 1
Level 2
（Elevated 10.16 mm above Level 1）
Level 3
（Elevated 20.32 mm above Level 1）
Adjusting the bracket to Level 2 or Level 3 improves compatibility with bottom-mounted fans or radiators.
Lowering the bracket to Level 1 enhances the visibility of AIO liquid coolers with built-in displays.
Note: Once the adjustment is complete, please ensure the screw is properly secured.
THREE DISPLAY ANGLES
Each height level supports forward, neutral, and backward display angles, with dedicated mounting holes on the support arm for each position. All adjustments are quick, precise, and completely tool-free.
Forward
Neutral
Backward
Forward Position
A forward tilt not only boosts airflow and
thermal efficiency but also ensures better
clearance for high-performance coolers.
(Demonstrated with LANCOOL 217)
Backward Position
A backward tilt showcases the graphics card
with a more refined and visually appealing angle.
(Demonstrated with O11 Vision Compact)
Flexible support arm placement to suit different GPU setups.
PERFORMANCE, SECURED WITH STRENGTH
Anti-Sag Support: Rock Solid and Reliable
The anti-sag arm supports up to 10kg with out bending and mounts directly to the motherboard standoffs. Also, it offers adjustable height settings for precise alignment, working seamlessly with 4-slot GPU configurations supported by the bracket.
Users can adjust the height of the support arm based on the height settings of the bracket. Multiple height options ensure compatibility, including adjustments after rotation.
Note: Please check the GPU’s display height and tilt position, and adjust the support bracket before installation. This anti-sag bracket is not compatible with GPU brackets installed in PCIe slots 3 through 8, so ensure compatibility based on your specific setup.
ARGB LIGHTING: A TOUCH OF BRILLIANCE
The built-in 5V ARGB lighting integrates effortlessly with major motherboard lighting software. Vivid effects bring the build to life and add visual depth to the system’s core.
PCIE 5.0 CABLE BUILT FOR HIGH SPEED AND FULL COMPATIBILITY
The 155mm PCIe 5.0 riser cable delivers up to 32Gb/s bandwidth, which is twice the speed of PCIe 4.0. It supports PCIe 2.0 to 4.0 devices and ensures stable signal transmission with consistently high performance across wide range of GPUs.
Note: Always ensure both ends of the riser cable are securely connected to the GPU and motherboard while the system is powered off. Improper installation may cause electrical short circuits or hardware damage.
MADE TO MATCH , BUILT TO ADAPT
This bracket is designed for standard ATX chassis, typically around 210 mm (W) × 450–500 mm (H) × 400–500 mm (D), covering both mid-tower and full-tower cases. It requires six slots for vertical or seven slots for angled mounting, and with a clearance of up to four slots (≈80 mm, 1 slot = 20 mm), it ensures a perfect fit even for today’s high-end graphics cards.
COMPATIBILITY & LIAN LI CASE SUPPORT
In addition to LIAN LI cases, any chassis from other brands that meets the above specifications can also be paired with the bracket. Users can purchase it separately for flexible use, making it an easy upgrade option for most standard ATX setups.
- LANCOOL: 217 / 207D / 207 / 206 / 216 / III / 205 / 215
- O11 Vision Compact / O11 Vision
- O11D EVO RGB / O11D EVO RGB Lamborghini
- O11D MINI V2 (limited use) – This case supports the bracket with certain restrictions. For the best experience, we recommend using the included vertical GPU kit that comes with the chassis.
