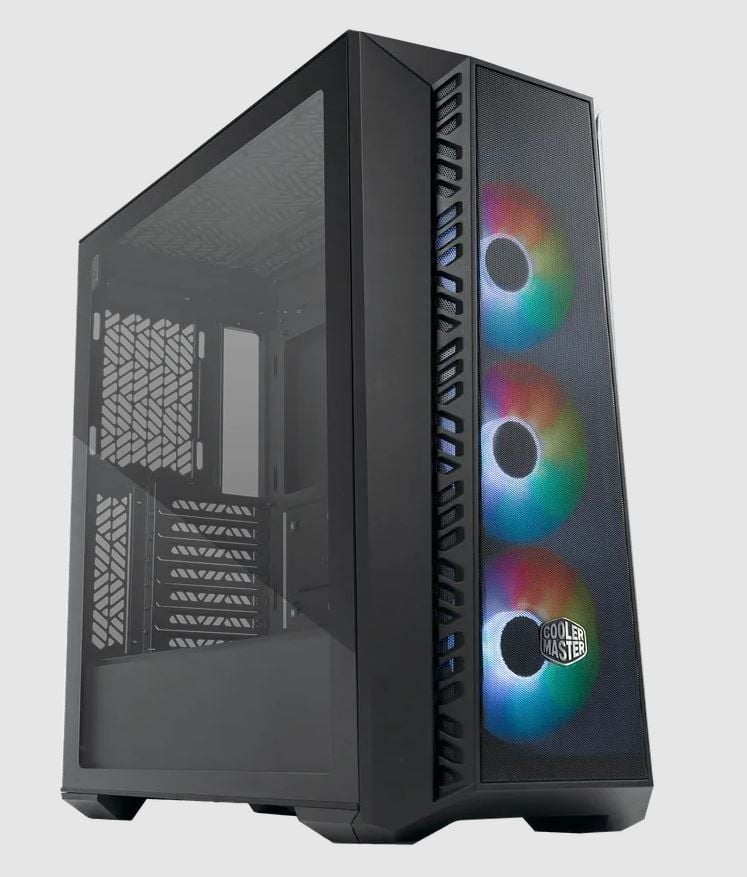

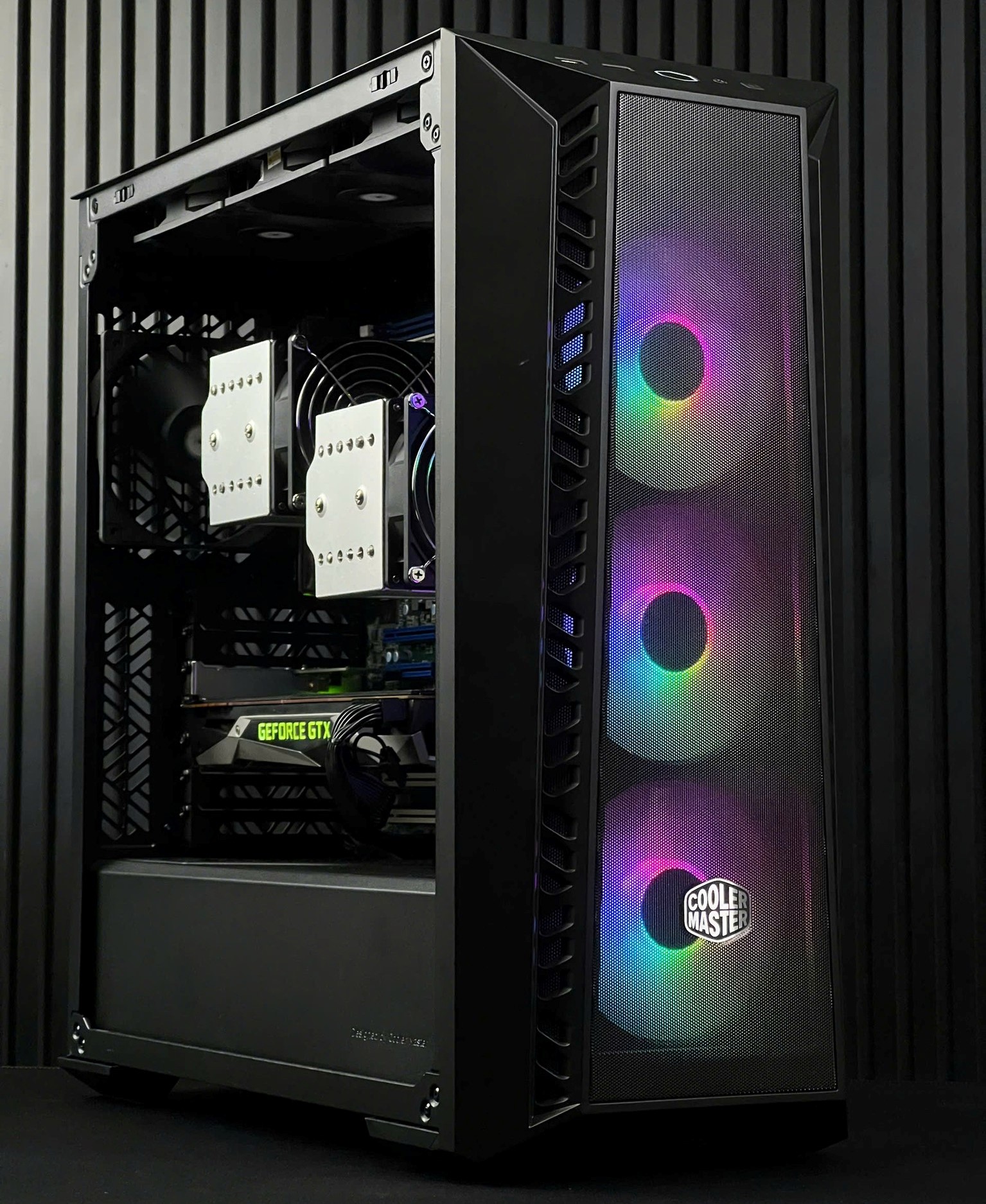

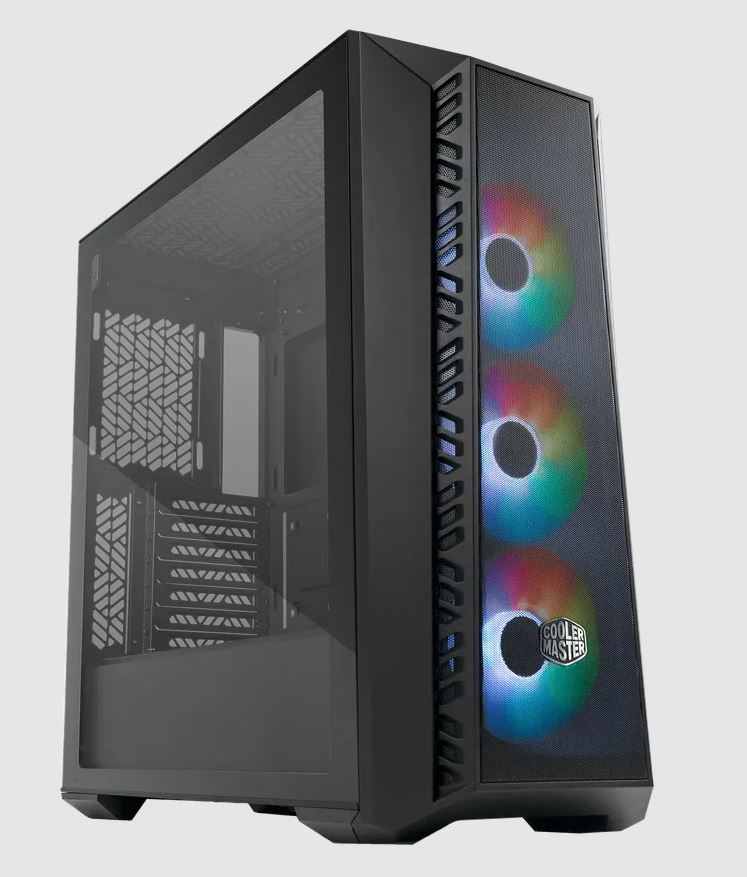

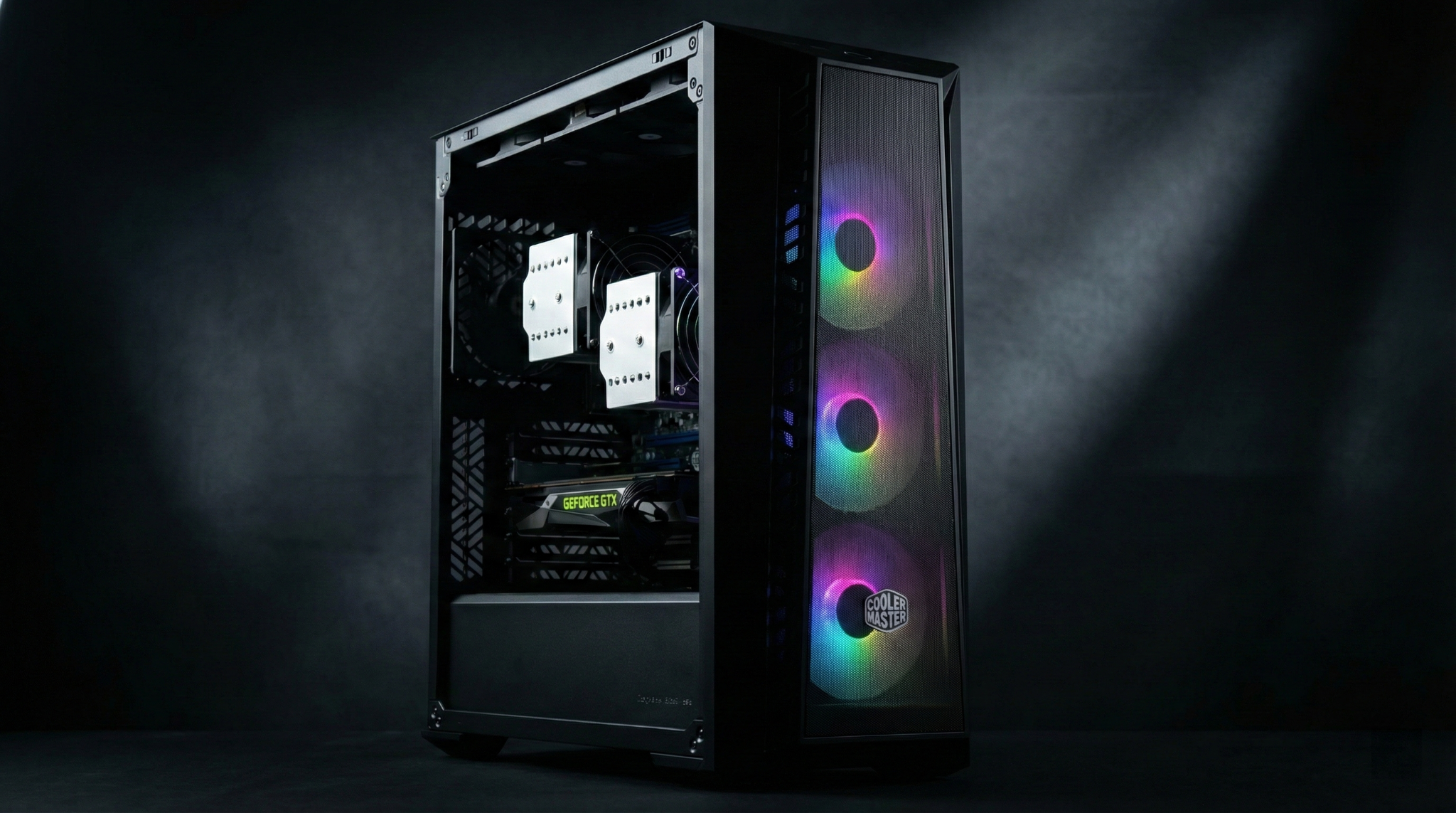

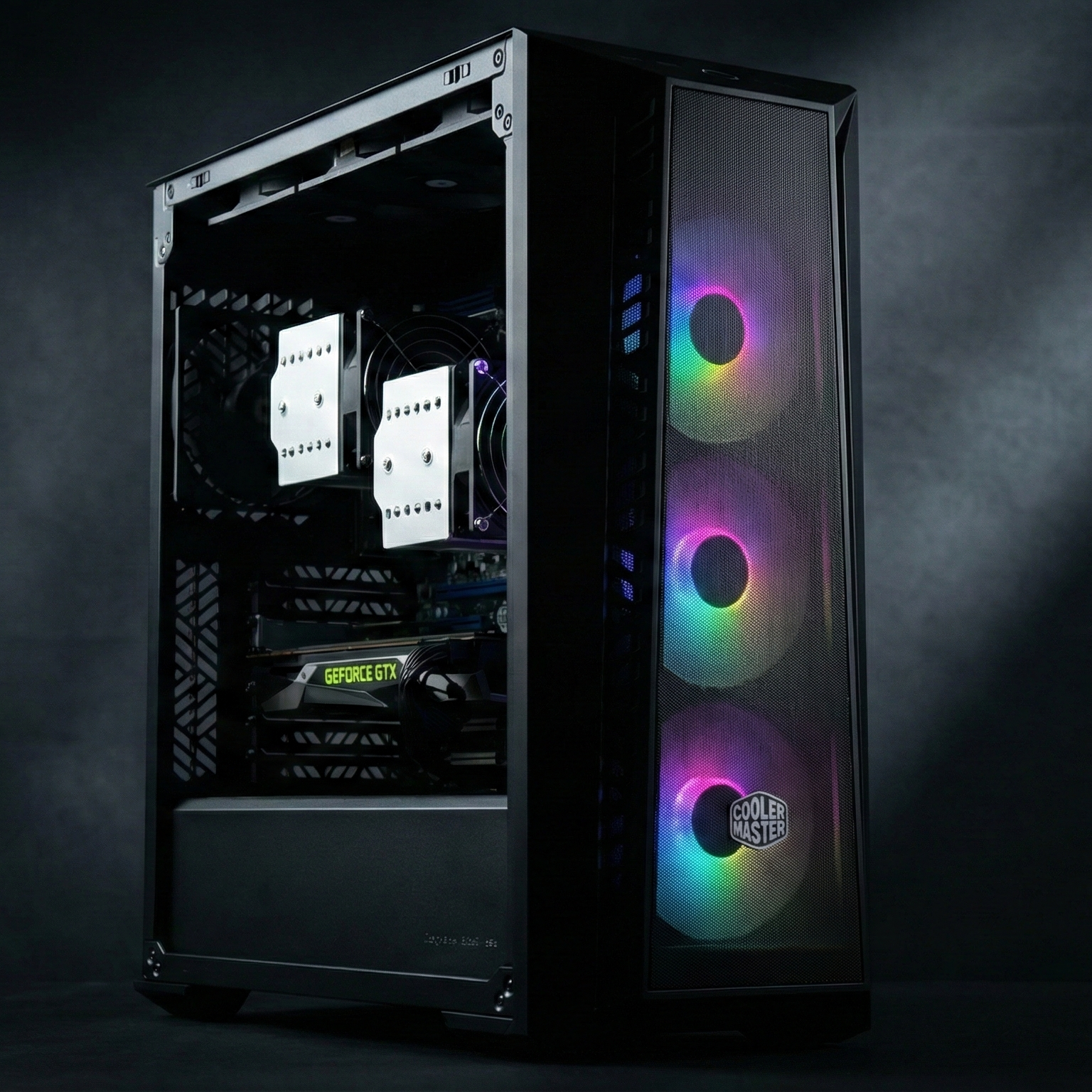

MasterBox 520 Mesh: MB520-KGNN-S00, MasterBox 520 Mesh White: MB520-WGNN-S00
Exterior ColorBlack
Materials - ExteriorMesh, Steel, ABS Plastic, Tempered Glass
Materials - Left Side PanelTempered Glass
Dimensions (L x W x H)499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)
Motherboard SupportMini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
Expansion Slots7
3.5" Drive Bays2
2.5" Drive Bays3
I/O Panel - USB Ports1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)
I/O Panel - Other1x Reset/ARGB button
Included AccessoriesARGB Fans Hub
Pre-installed Fans - TopN/A
Pre-installed Fans - Front3x CF120 ARGB
Pre-installed Fans - RearN/A
Fan Support - Top3x 120mm, 2x 140mm
Fan Support - Front3x 120mm, 2x 140mm
Fan Support - Rear1x 120mm
Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
Radiator Support - Front120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear120mm
Clearance - CPU Cooler165mm
Clearance - PSU200mm (Recommended up to 170mm)
Clearance - GFX410mm
Dust FiltersFront, Top, Bottom
Power Supply SupportATX
SizeMid Tower
SeriesMasterBox Series
