Model

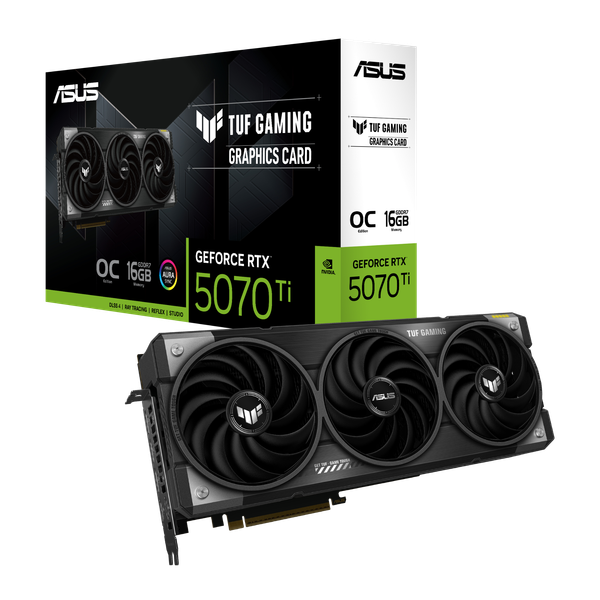

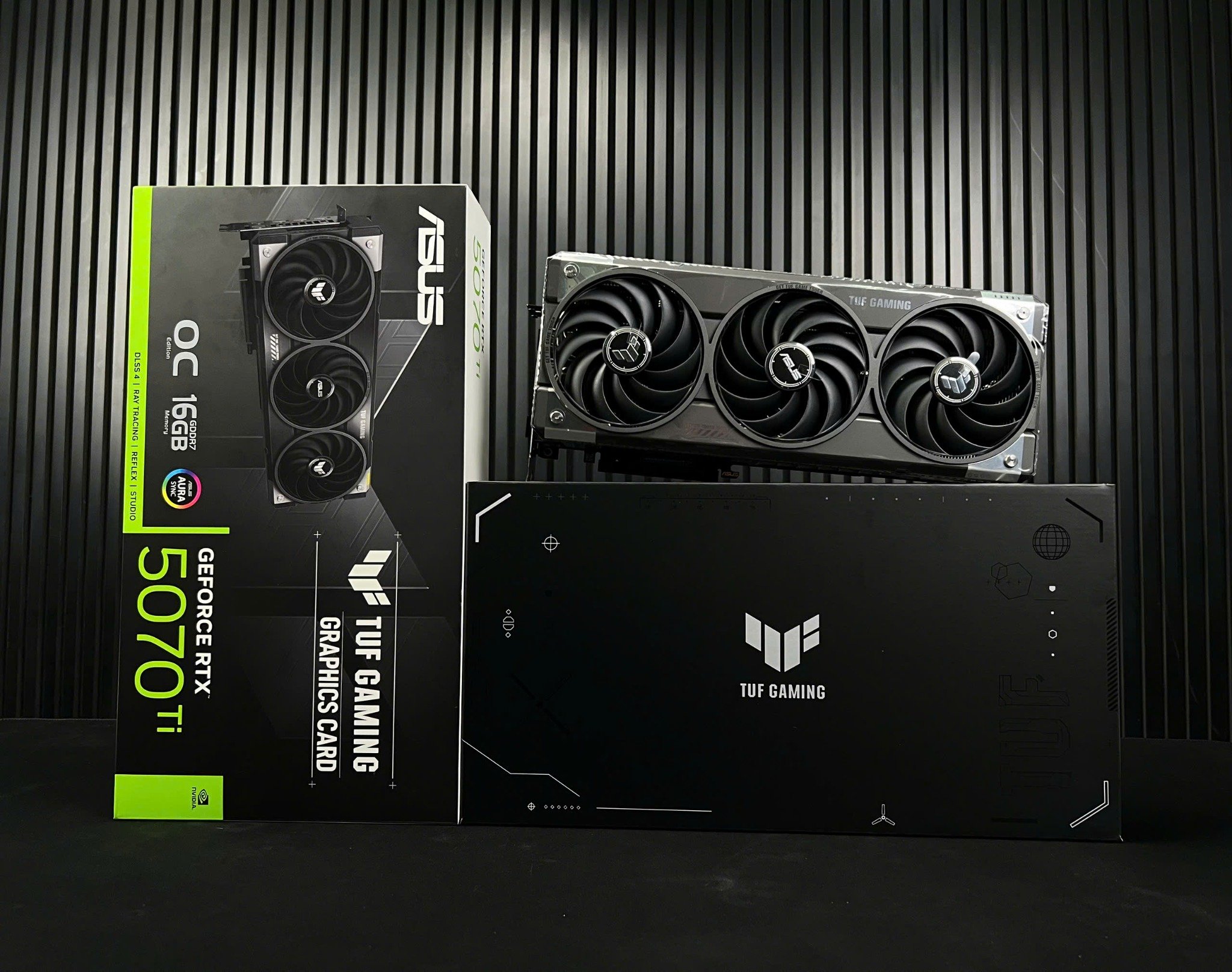

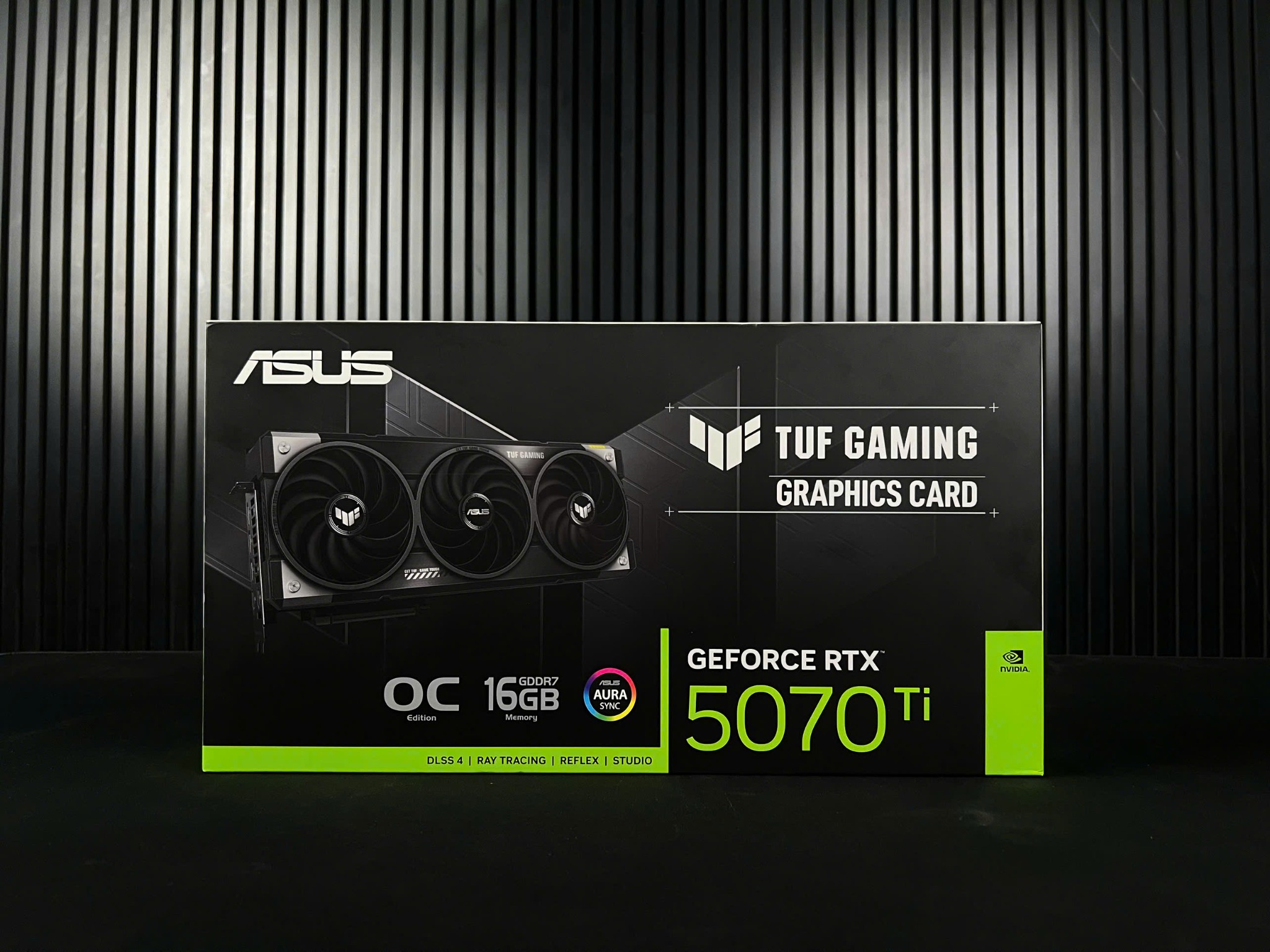

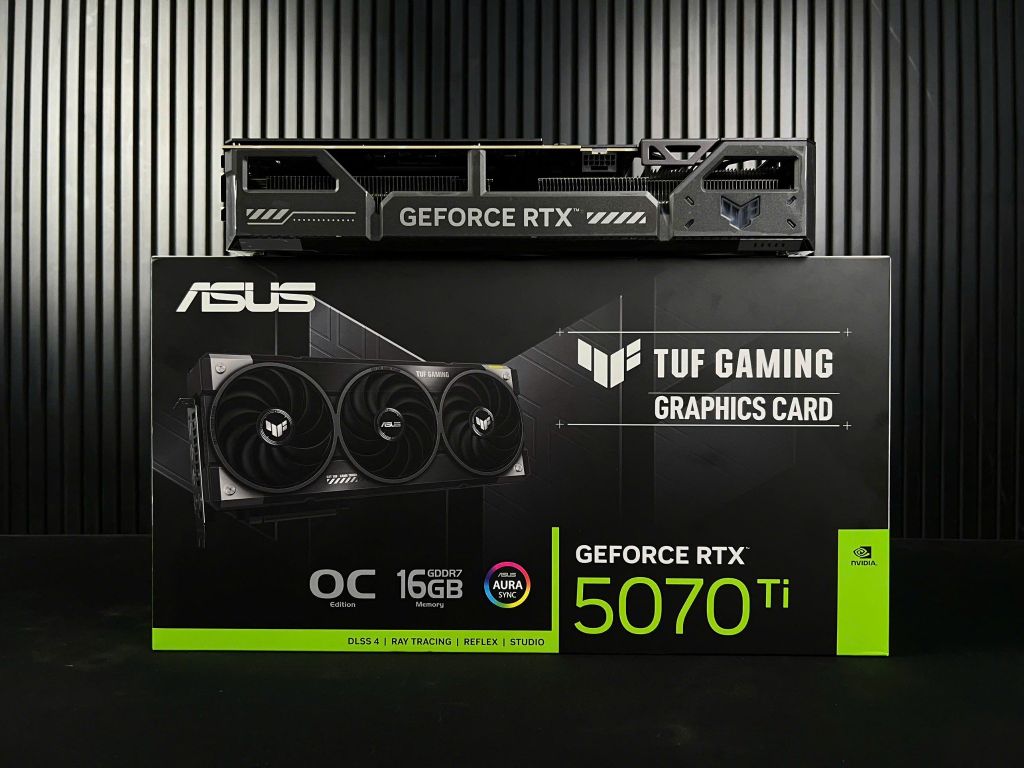

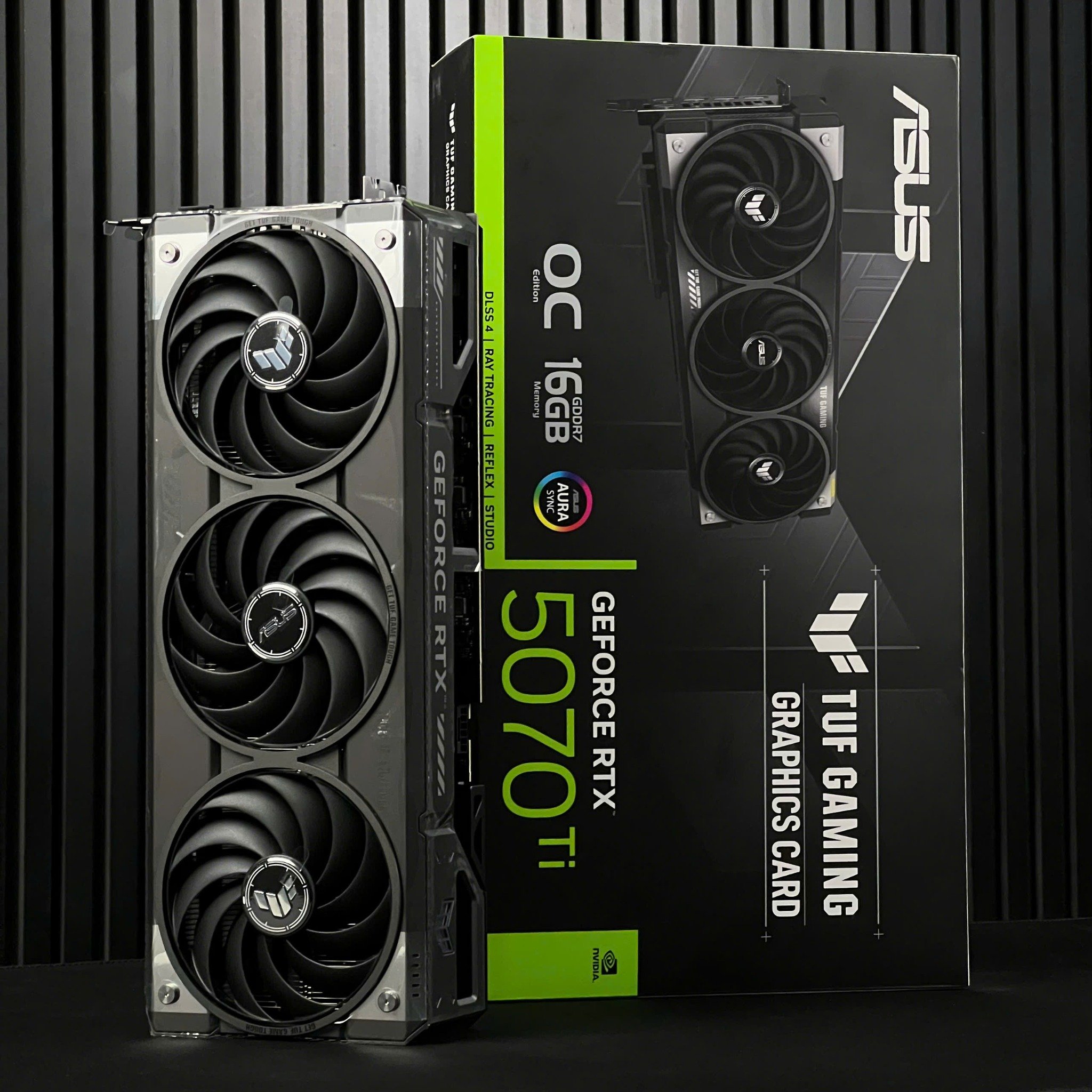

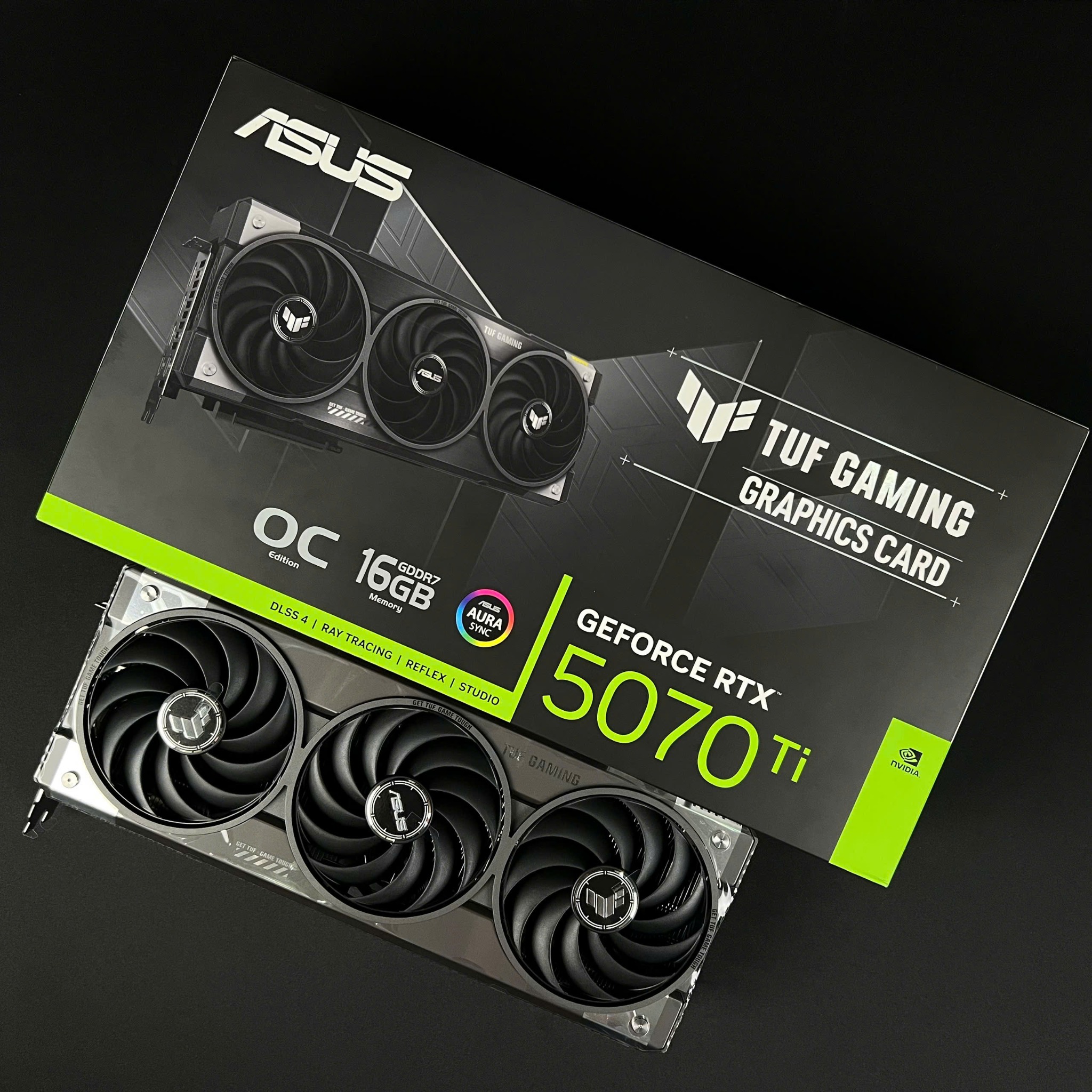

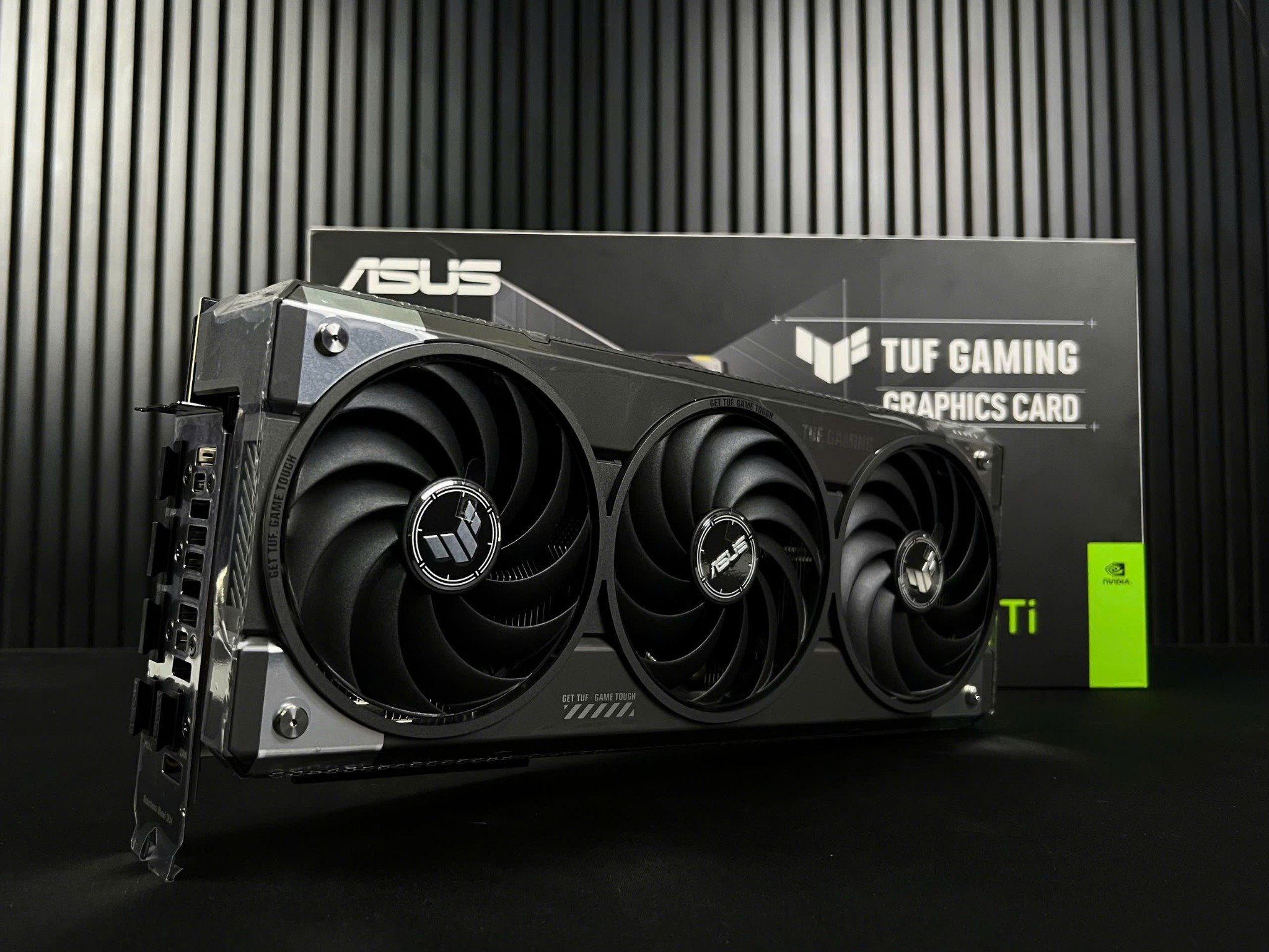

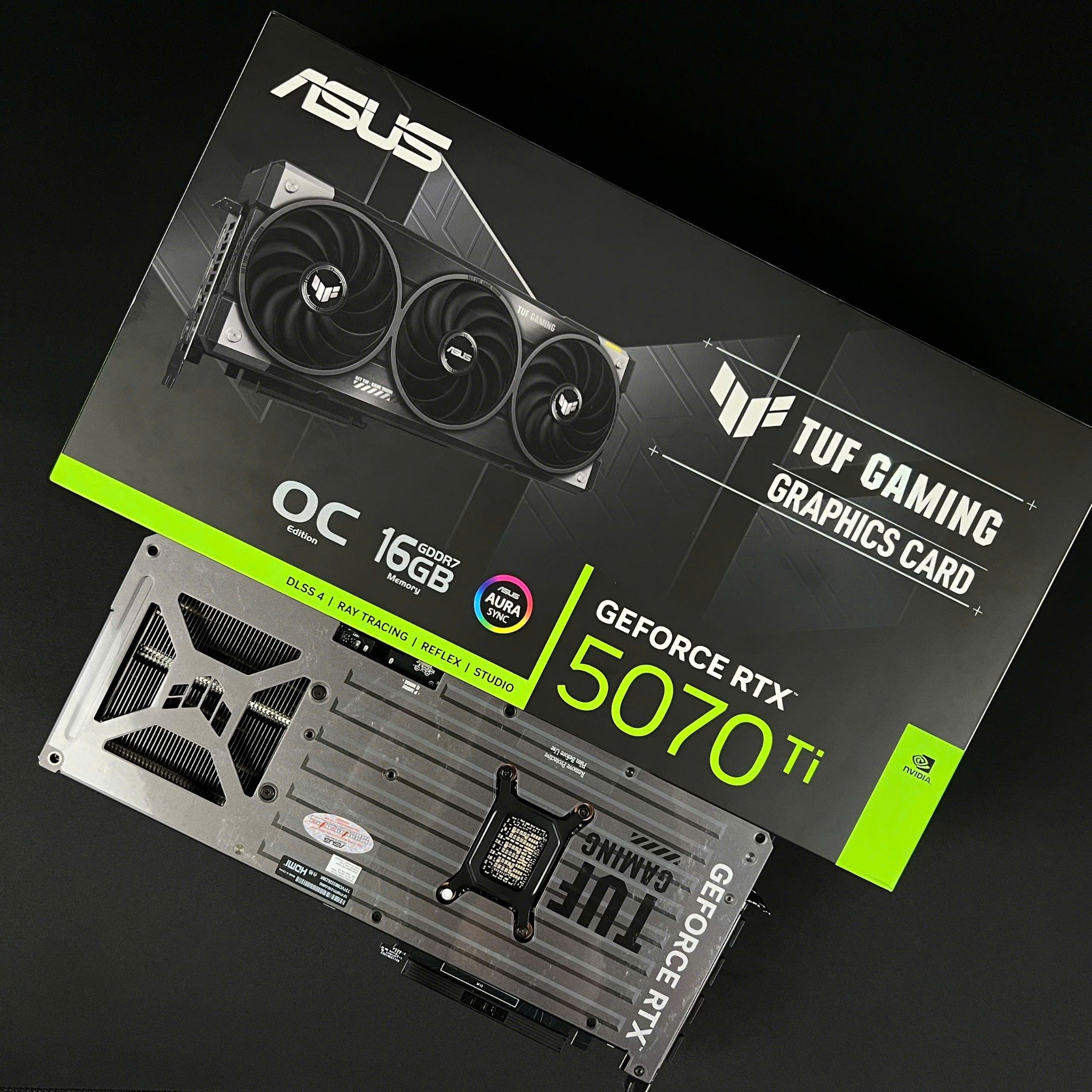

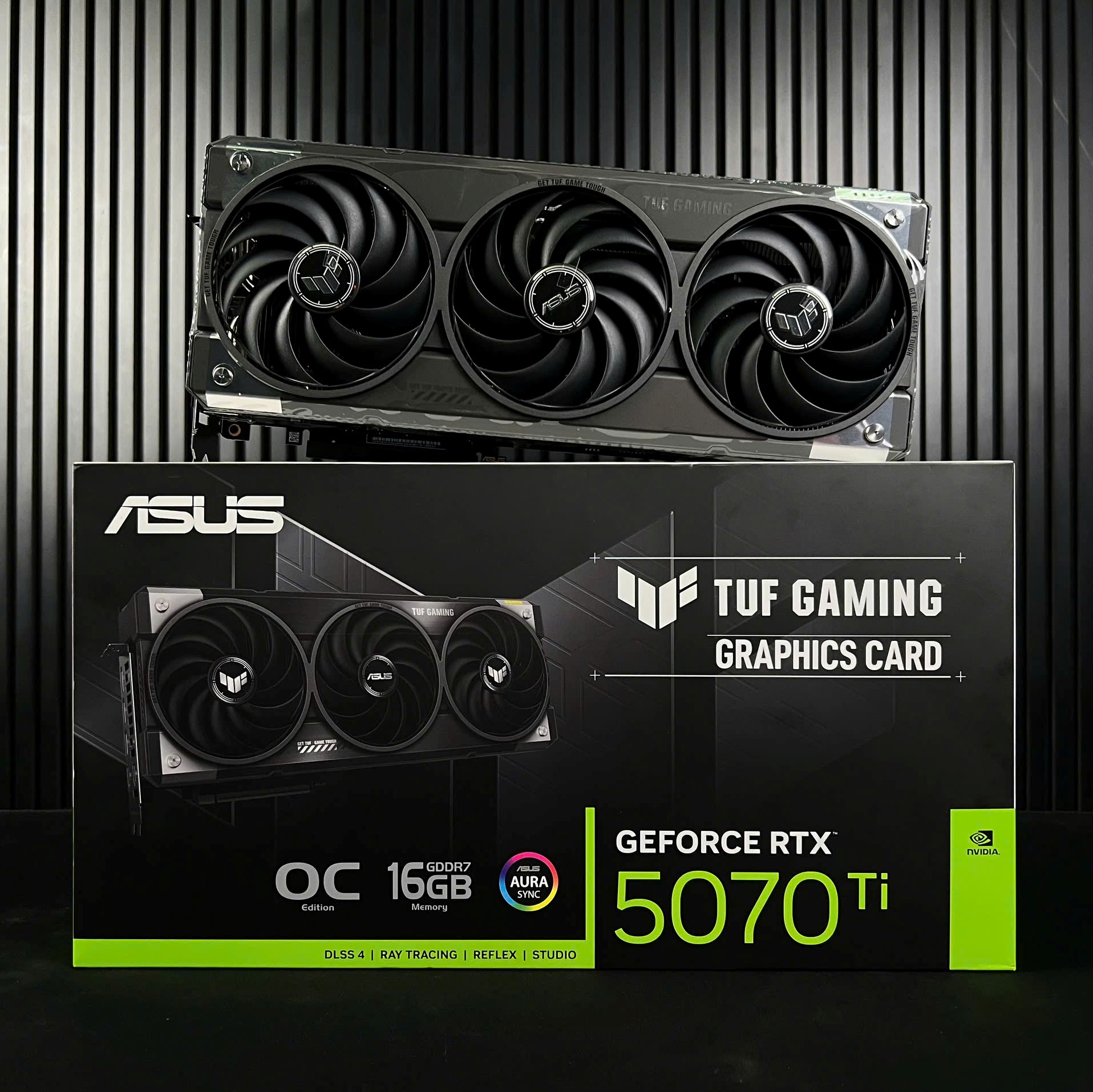

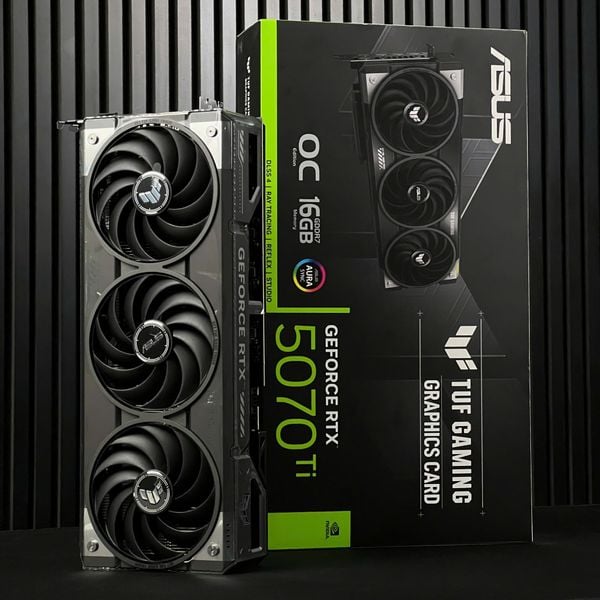

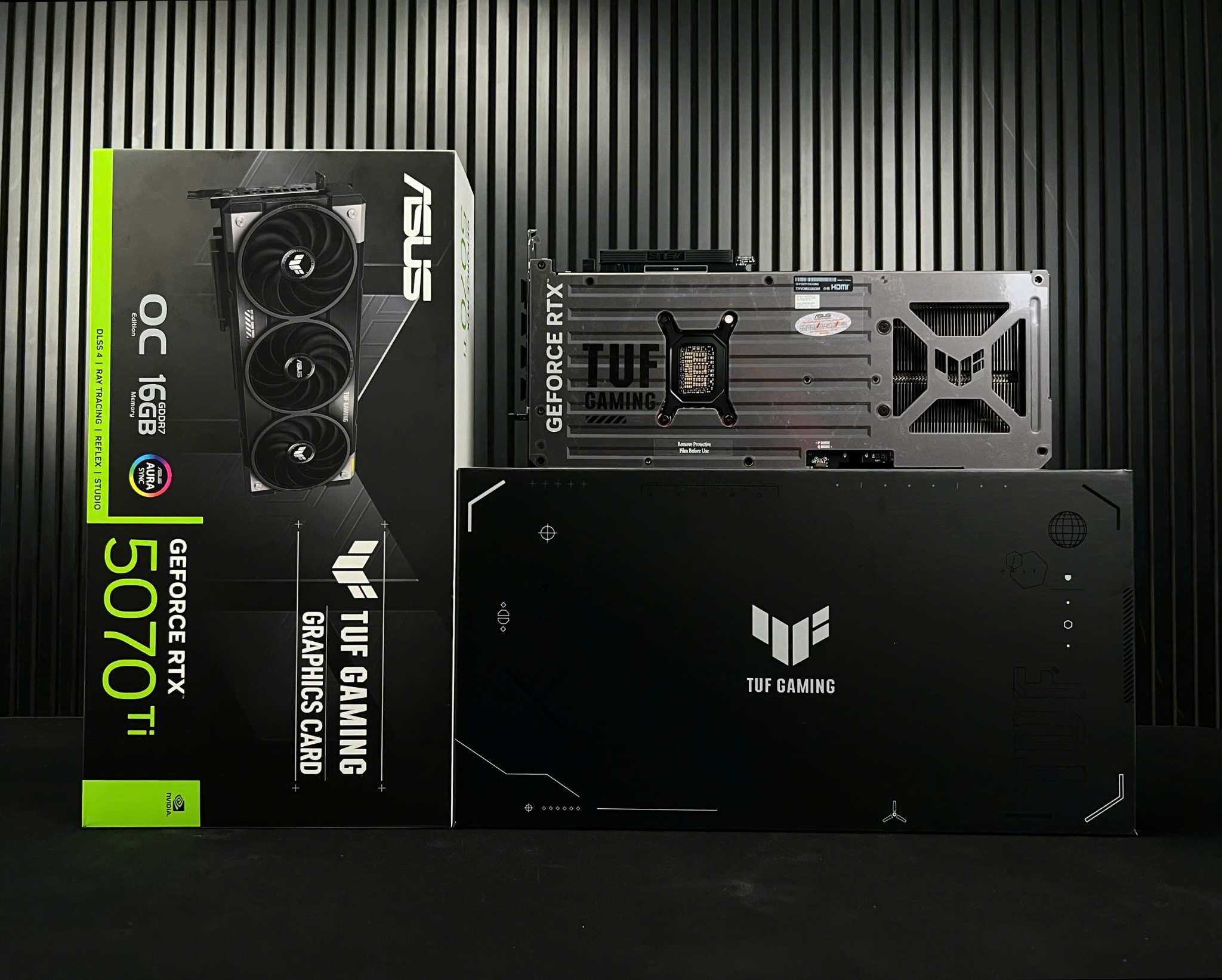

TUF-RTX5070TI-O16G-GAMING
Graphic Engine
NVIDIA® GeForce RTX™ 5070 Ti
AI Performance
1484 TOPs
Engine Clock
OC mode: 2610MHz
Default mode: 2588MHz (Boost Clock)
OC mode: 2610MHz
Default mode: 2588MHz (Boost Clock)
Interface
Yes x 3 (Native DisplayPort 2.1b)
Yes x 2 (Native HDMI 2.1b)
HDCP Support Yes (2.3)
Dimensions
329 x 140 x 62.5 mm
12.95 x 5.51 x 2.46 inch
329 x 140 x 62.5 mm
12.95 x 5.51 x 2.46 inch
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
CUDA Core
8960
Memory Speed
28 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adpater Cable (1 to 3)
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adpater Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.125 Slot
AURA SYNC
ARGB
